High-Output Bin Capacity
Boost your productivity with a massive 10 yd³ (7.6 m³) aggregate autonomy. The 740 K is engineered for non-stop industrial delivery, allowing for fewer refills and maximum efficiency on large-scale infrastructure projects.

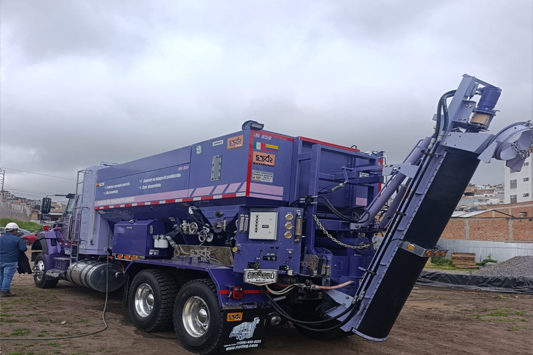

The definitive on-site factory for high-output projects, industrial infrastructure, and large-scale concrete sales. Our advanced volumetric technology delivers 65 yd³/hr (50 m³/hr) of fresh concrete with zero waste and surgical PSI control, providing the massive capacity of a batching plant exactly where your project demands it.
The ultimate on-site solution for high-volume infrastructure, industrial paving, and large-scale concrete sales. Engineered for heavy-duty reliability, the 740 K delivers a continuous output of up to 65 cubic yards per hour (50 m³/hr) with zero-waste production and precision PSI control—delivering the full capacity of a batching plant exactly where your project demands it.
The 750 L Series is the ultimate industrial solution for companies that demand high-volume concrete production without the logistical delays of ready-mix. By leveraging a robust monolithic structure and the DCC™ precision system, this unit gives your operation absolute control over mix design, total yardage, and operational overhead.
The premier on-site solution for high-output projects, industrial infrastructure, and large-scale concrete sales. Engineered for maximum uptime, the 740 K delivers a consistent 65 yd³/hr (50 m³/hr) of fresh concrete with zero waste and precision-grade PSI control—bringing the full-scale capacity of a batching plant directly to your job site.
Boost your productivity with a massive 10 yd³ (7.6 m³) aggregate autonomy. The 740 K is engineered for non-stop industrial delivery, allowing for fewer refills and maximum efficiency on large-scale infrastructure projects.

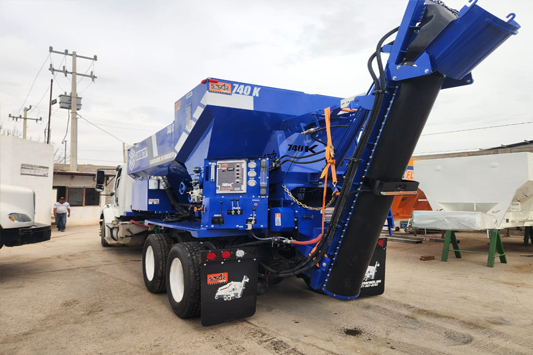

Achieve superior mix integrity with our heavy-duty 12-inch helical mixing auger. It ensures rapid, consistent discharge for any mix design, from high-slump flowable fill to high-performance structural concrete.
Engineered for continuous material flow, the 24-inch high-traction conveyor system provides a steady, high-volume supply to the mixer, supporting a massive production speed of up to 65 yd³/hr (50 m³/hr).
Master remote job sites with a 530-gallon (2,000L) high-durability reservoir. This integrated system ensures your "on-site factory" maintains peak performance longer, eliminating the need for external water support.
| Feature | Specification (Metric / US Standard) |
|---|---|
| Max Production Speed | 50 m³/hr (65 yd³/hr) |
| Aggregate Bin Capacity | 7.6 m³ (10 yd³) |
| Cement Hopper Capacity | 3.5 Tons (7,700 lbs) |
| Water Reservoir | 2,000 L (530 gal) - Industrial Polypropylene |
| Mixing System | 12-inch high-performance helical auger |
| Conveyor System | 24-inch high-traction conveyor belt |
Technology & Technical Specifications
Applications & Versatility
Media
Downloads
Core specs, capacities, and configuration overview for the 327KMobile.
Basic operation, safety, and daily inspection checklist.
Recommended intervals for lubrication, calibration, and wear items.
Get lead time, configuration options, and quote support.
FAQ
No. The 740 K is an advanced volumetric mixing plant. Unlike traditional drum trucks, it stores raw materials in separate bins and mixes them fresh on-site, only producing the exact amount of concrete you need with zero waste.
Yes. The integrated digital dosing system allows operators to adjust mix designs on-the-fly. This flexibility ensures you can meet different PSI requirements or adapt to changing job site conditions without stopping the production flow.
Absolutely. We provide comprehensive operator training, calibration guidance, and ongoing technical support to ensure your crew maximizes the productivity and long-term reliability of your 740 K volumetric plant.
You can use our "Request a Quote" form to receive detailed pricing, available configuration options, and current lead time estimates tailored to your specific project needs.
