The 327 K Towable is the industry’s most versatile trailer-mounted volumetric plant. Engineered for contractors who need high-mobility without a dedicated truck, it delivers fresh concrete anywhere your pickup can go. With a production capacity of 32.7 yd3/hr, it is perfect for utility work, remote projects, and urban short-loads

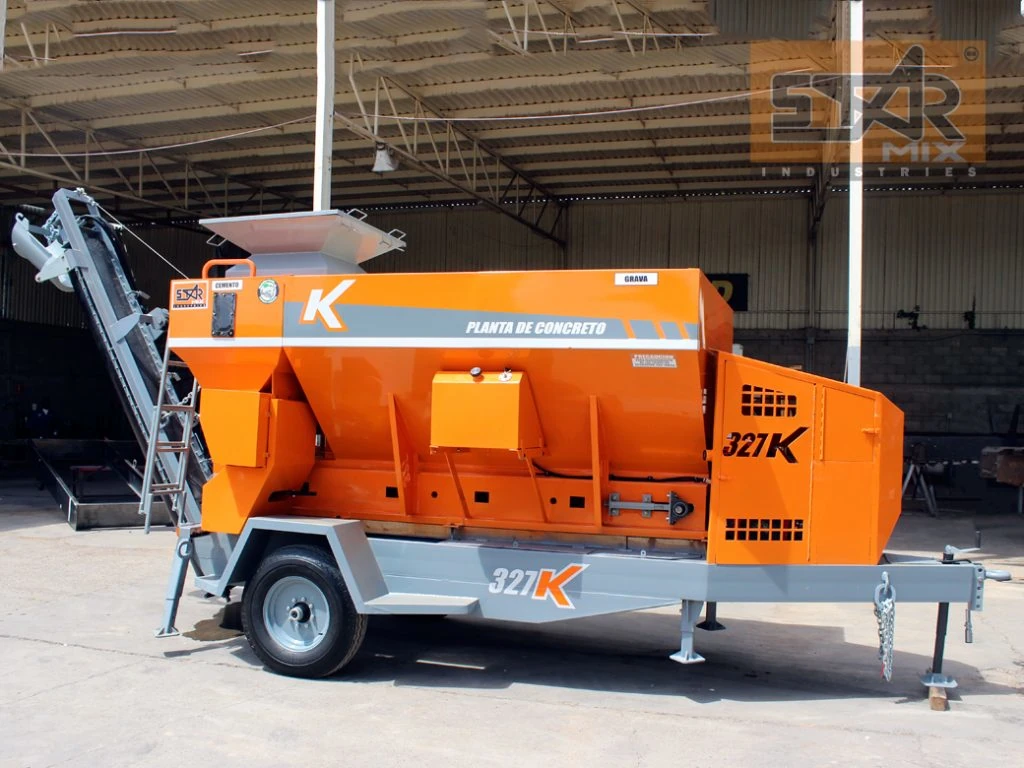

Built for real job site performance. Materials are stored separately and measured precisely, giving crews control over mix quality, quantity, and cost.
The 327 K Towable is the ultimate solution for contractors who demand high-precision concrete without the need for a dedicated truck chassis. By storing materials separately and measuring them with surgical precision, this unit gives your crew absolute control over mix quality, volume, and overhead costs.
Engineered as a "Green Machine," the 327 K Towable maximizes profitability by eliminating concrete waste and reducing fuel consumption. This high-precision volumetric plant gives you the power of a full-scale batching facility in a high-mobility, trailer-mounted design.
Maximize your existing fleet by eliminating the need for a dedicated truck chassis. The 327 K Towable offers a high-capacity volumetric solution that can be hauled by any compatible power unit, providing unmatched logistical freedom.
Stop paying for concrete you don't use. Our "on-site mixing" technology allows you to produce the exact yardage required, ensuring a 100% fresh material yield while eliminating return fees and expensive over-ordering.
Engineered for uncompromising consistency, the integrated Digital Counter provides precise operational control. Track production through real-time monitoring of mixing times and batch counts, ensuring every pour is technically accurate.
Powered by a high-performance Honda GX 630 engine, the 327 K Towable is a "Green Machine" built for maximum uptime. The 9" helical auger with interchangeable segments ensures long-term durability in demanding environments.
| Feature | US Standard Specification |
|---|---|
| Max Production Capacity | Up to 32.7 yd³/hr |
| Average Production Speed | 3.9 yd³ per batch |
| Mixing Auger | 9-inch high-performance helical screw with interchangeable segments |
| Aggregate Capacity (Total) | 6.15 yd³ (Coarse: 3.15 yd³ / Fine: 3.0 yd³) |
| Cement Storage | 1.3 Tons (Approx. 2,645 lbs) |
| Water Reservoir | 317 Gallons (Anti-corrosive metal tank with fungal protection) |
| Power Unit | Honda GX 630 Gasoline Engine |
| Control System | Precision Digital Counter (Time / Weight-kg / Batch Count) |
| Towing System | 24,000 lbs Max Capacity | Independent Torsion Bar Suspension |
| Approximate Weight | 6,856.37 lbs |
Technology & Technical Specifications
Applications & Versatility
Media
Downloads
Core specs, capacities, and configuration overview for the 327KMobile.
Basic operation, safety, and daily inspection checklist.
Recommended intervals for lubrication, calibration, and wear items.
Get lead time, configuration options, and quote support.
FAQ
The 327 K Towable is designed for high-mobility. It features a clamp coupling with a 24,000 lbs maximum towing capacity, making it compatible with standard heavy-duty pickups (such as F-250/350 or equivalent) depending on your local road regulations.
Yes. Unlike standard trailers, the 327 K is engineered with an independent torsion bar suspension system specifically designed to provide stability and durability when transporting materials across rough job site terrain.
No. The unit is completely self-contained and powered by a high-performance Honda GX 630 gasoline engine, allowing you to produce concrete in remote locations without needing external power or a truck's PTO.
The integrated digital counter tracks mixing times, material weight (kg), and batch counts in real-time. This allows operators to verify that every pour meets the exact specifications of the job design before and during discharge.
Absolutely. We offer comprehensive operator training and technical support to ensure your crew can calibrate, operate, and maintain the 327 K Towable for maximum productivity and long-term reliability.
